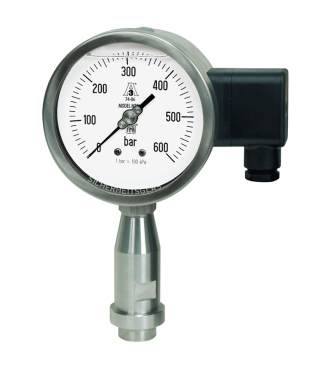

MT OM DN100

Pressure transmitter with local readout, for homogenizer DS 4” (100mm)

✔ Construction and finishing: as per 74-06.
✔ Sterilization temperature: +302°F (+150°C) max.
✔ Double elastic element: Bourdon tube and electronic sensor.
✔ Vibrations and pulsations proof.
✔ EMC immunity: as per EN 61326.
✔ Calibration: adjustable.
✔ Full traceability

Industrial sector:
  • Food
  • Pharmaceutical
  • Sanitary
Specific applications:
  • Crystallizzing fluids
  • Viscous fluids
  • Fluctuating pressure
  • Sedimentous fluids
  • Vibrations
Conformity:
  • EN 837 standard
  • 3A
  • Directive PED 2014/68/UE
  • Directive RoHS 2011/65/UE
  • Directive EMC 2014/30/UE
  • EAC Conformity
Function:
  • Transmitter with local indication
Accuracy:
  • 0,5 of FSV
Material:
  • All Stainless steel
Instrument type:
  • Gauges pressure transmitter
Range:
  • 0...100 / 0...1600bar
Sensing element:
  • Bourdon tube/sensor
Protection degree:
  • IP 55, IP 65
Working pressure:
  • 75% of FSV
Output signal:
  • 4...20mA, 0...10Vcc, 0...5Vcc
