3.43 – II 2GD

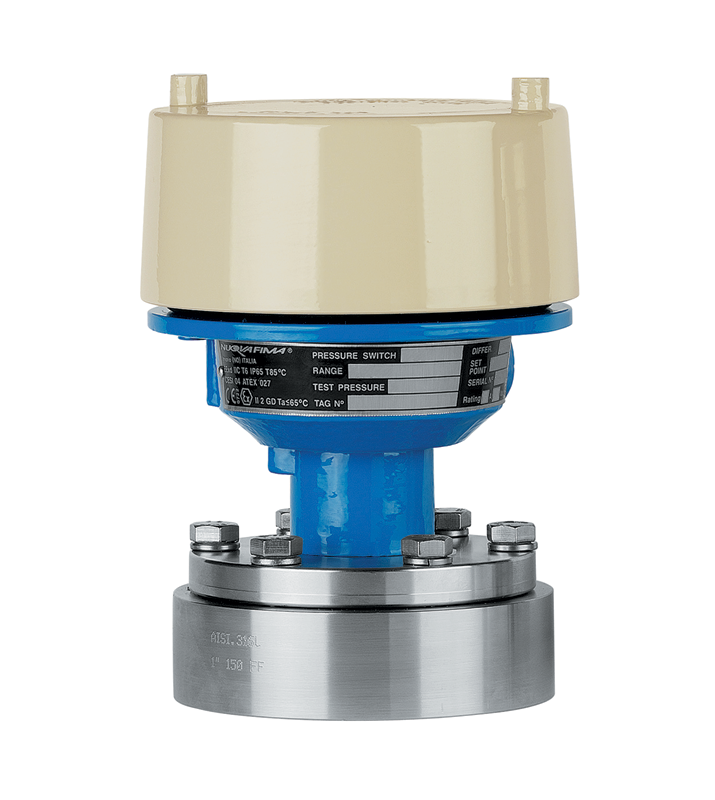

Diaphragm pressure switches ATEX flameproof enclosure

These flameproof electrical apparatus comply with European Directive ATEX 94/9/EC, for group II and category 2 GD. They are suitable for a variety of uses in hazardous zones 1, 2, 21 and 22 in which the use of flameproof instrument is required. The sensing element is a metallic diaphragm and acts directly on the microswitch through a self-centering pivot. The simplicity of the design, without levers, cams or similar mechanisms, gives the unit an exceptionally long working life.

Industrial sector:
  • Chemical, Petrochemical
  • Energy
  • Oil & Gas
  • Engineering Procurement Construction (EPC)
Instrument type:
  • Pressure switches
Specific applications:
  • NACE version
  • ATEX version
  • OXIGEN version
  • Crystallizzing fluids
  • Viscous fluids
  • Corrosive fluids
  • Vacuum
  • Special overpressure
  • Combined (Vacuum + Pressure)
  • Sedimentous fluids
Conformity:
  • NACE MR0103
  • Directive ATEX 2014/34/UE
  • EAC Conformity
Function:
  • Electric contact
Material:
  • Stainless steel and alluminium alloys
Process connection:
  • Flanged
Sensing element:
  • Diaphragm
Protection degree:
  • IP 65
Electrical switching:
  • SPDT microswitch, one or two intervention
Sensing element material:
  • Stainless steel
Type of protection:
  • EX db IIC T6 Ex tb IIIC T85°C
