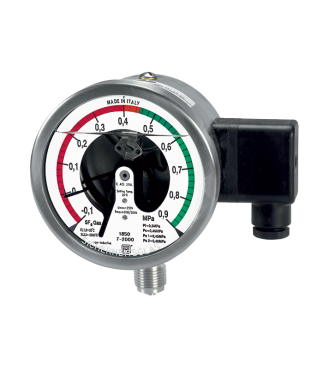

MCE18/SF6

Pressure gauges for SF6 gas monitoring DS 4” (100 mm)

These instruments are manufactured to monitor the electrical operations on hermetically sealed systems containing Sulphur Hexafluoride gas (SF6). The indication and the electrical operations are calibrated to the gas density (isochore) according to the relation pressure-temperature. The M5 model is suitable for indoor installation while the M6 model has been designed for the outdoor installation as well. The oil filled executions are particularly suitable for installation when vibrations are apparent.

Industrial sector:
  • SF6 - Gas
Instrument type:
  • Bourdon tube pressure gauges
Conformity:
  • EN 837 standard
  • Directive PED 2014/68/UE
  • Directive BT 2014/35/UE
Function:
  • Electric contact
Specific applications:
  • Vacuum
  • Combined (Vacuum + Pressure)
Material:
  • All Stainless steel
Range:
  • -1...0,6 / -1...24bar
Protection degree:
  • IP 55, IP 65
Electrical switching:
  • magnetic snap-action, inductive - intervention: 1...2
Working pressure:
  • 75% of FSV
