MGS9/7

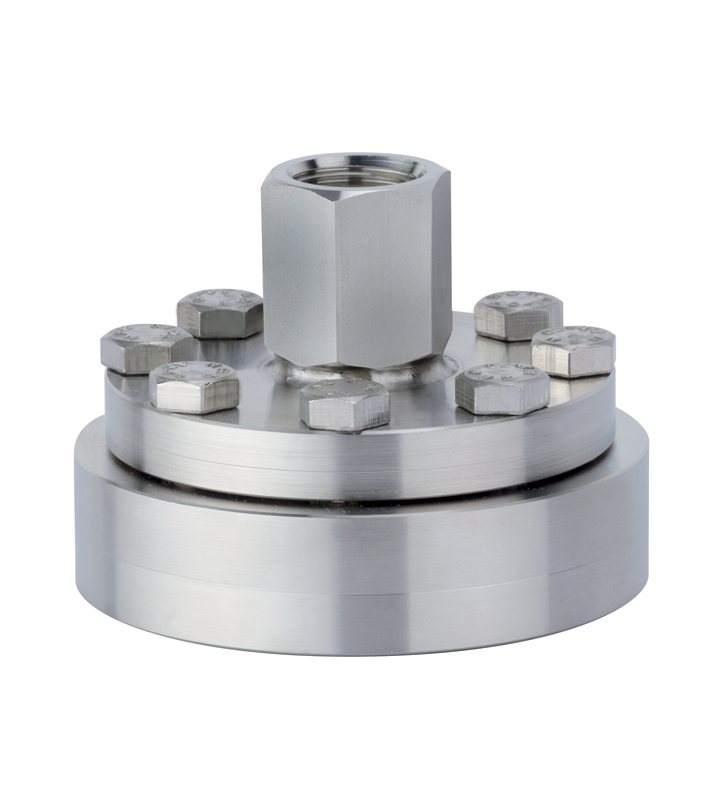

“Continuous duty” diaphragm seal, welded, with flanged connection

Diaphragm seals are designed to isolate the sensing element of pressure gauges, pressure switches and electronic pressure transmitter from process fluids which may be corrosive, viscous, sedimentous and/or with a high temperature. “Continuous duty” version as per ASME B40.2 : in case of accidental removal of the instrument or of liquid filling leak the diaphragm will place on the upper cup preventing any damage and any process liquid leak. Thanks to an exclusive calibration system the pressure gauge should stand an overpressure of 210 bar without the help of any pressure control switch. Process side are ASME/EN 1092 flanged to suit application in chemical, petrochemical, water treatment and paper industries.

Industrial sector:
  • Chemical, Petrochemical
  • Energy
  • Water treatment
  • Oil & Gas
  • Engineering Procurement Construction (EPC)
Specific applications:
  • NACE version
  • ATEX version
  • Crystallizzing fluids
  • Viscous fluids
  • Corrosive fluids
  • High process temperature
  • Sedimentous fluids
Conformity:
  • NACE MR0175
  • NACE MR0103
  • EN 1092
  • ASME B16.5
  • Directive ATEX 2014/34/UE
Function:
  • Accessories
Material:
  • Stainless steel and special materials
Accessories:
  • Diaphragm seals
Process connection:
  • Flanged
Range:
  • -1...0 / 160bar
Sensing element:
  • Welded diaphragm
Process connection material:
  • AISI 316, AISI 316L, Monel 400, Hastelloy C276, Hastelloy B2, ASTM A182 F51
Sensing element material:
  • AISI 316L, Monel 400, Hastelloy C276, Tantalum, Alloy 600, Alloy 825, Hastelloy B2, Nickel, Alloy 625
Sealing:
  • PTFE gasket
