MGS9/AL

Clamp connection diaphragm seal

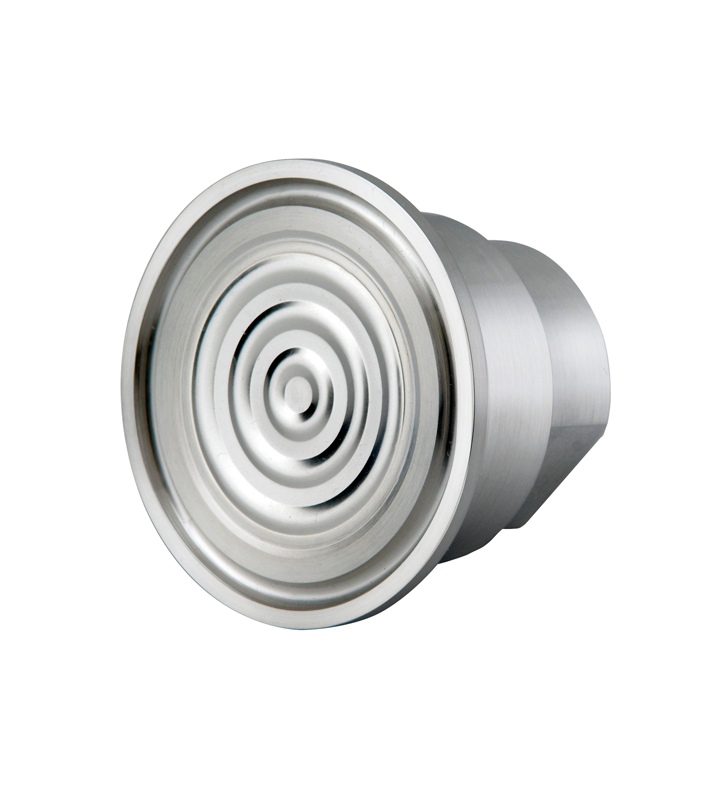

Diaphragm seals are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids that may be corrosive, viscous, sedimentous and/or with a high temperature. The diaphragm is welded to the upper body, to ensure separation of the filling fluid from the process medium. Faced diaphragm position enables deep cleaning of the surface while the quick-connection Clamp enables frequent removal from the process during sterilization and cleaning operations, a common requirement in the food processing industry.

Industrial sector:
  • Food
  • Pharmaceutical
  • Machine building (OEM)
  • Sanitary
Specific applications:
  • ATEX version
  • Crystallizzing fluids
  • Viscous fluids
  • Vacuum
  • Combined (Vacuum + Pressure)
  • Sedimentous fluids
Conformity:
  • 3A
  • ISO 2852 (CLAMP)
Function:
  • Accessories
Material:
  • All Stainless steel
Accessories:
  • Diaphragm seals
Process connection:
  • Clamp, AISI 316 L
Range:
  • 0...1 / 0...40bar
Sensing element:
  • Welded diaphragm
Sensing element material:
  • AISI 316 L
