MGS9/R

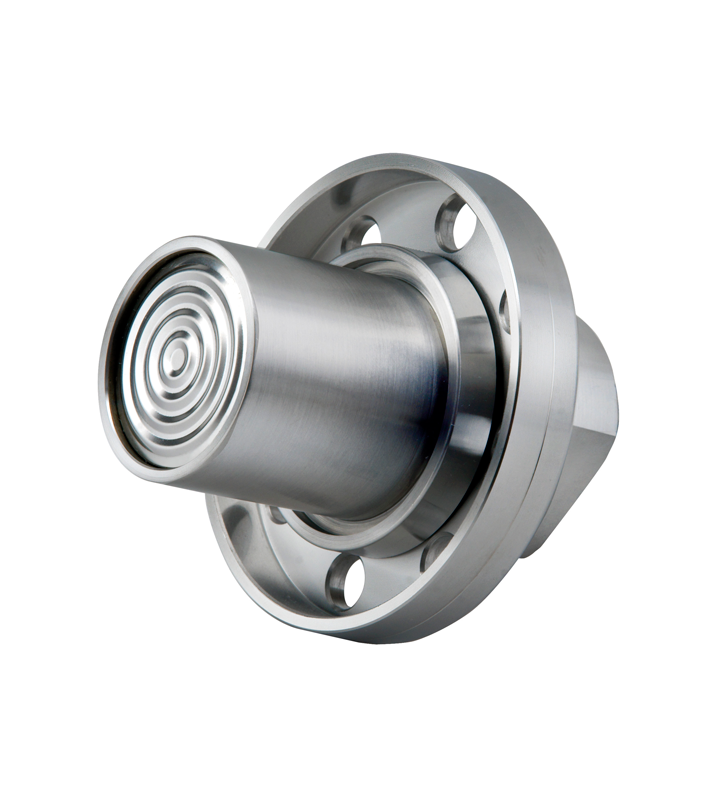

“In line” diaphragm seal

Diaphragm seals are designed to isolate the sensing element of pressure gauges and pressure switches from process fluids which may be corrosive, viscous, sedimentous and/or with a high temperature. The diaphragm is welded to the upper body, to ensure separation of filling fluid from process medium. The “in-line” diaphragm position enables deep cleaning of their surfaces. Flange clamping with metallic sealing guarantees the system against leakage at high process fluid temperatures and pressures.

Industrial sector:
  • Chemical, Petrochemical
  • Energy
  • Water treatment
  • Oil & Gas
  • Engineering Procurement Construction (EPC)
Specific applications:
  • ATEX version
  • Crystallizzing fluids
  • Viscous fluids
  • Corrosive fluids
  • Sedimentous fluids
Function:
  • Accessories
Material:
  • Stainless steel and special materials
Accessories:
  • Diaphragm seals
Process connection:
  • In line
Range:
  • 0...6 / 0...250bar
Sensing element:
  • Welded diaphragm
Process connection material:
  • AISI 316, AISI 316L
Sensing element material:
  • AISI 316L, Hastelloy C276
Sealing:
  • Metallic
