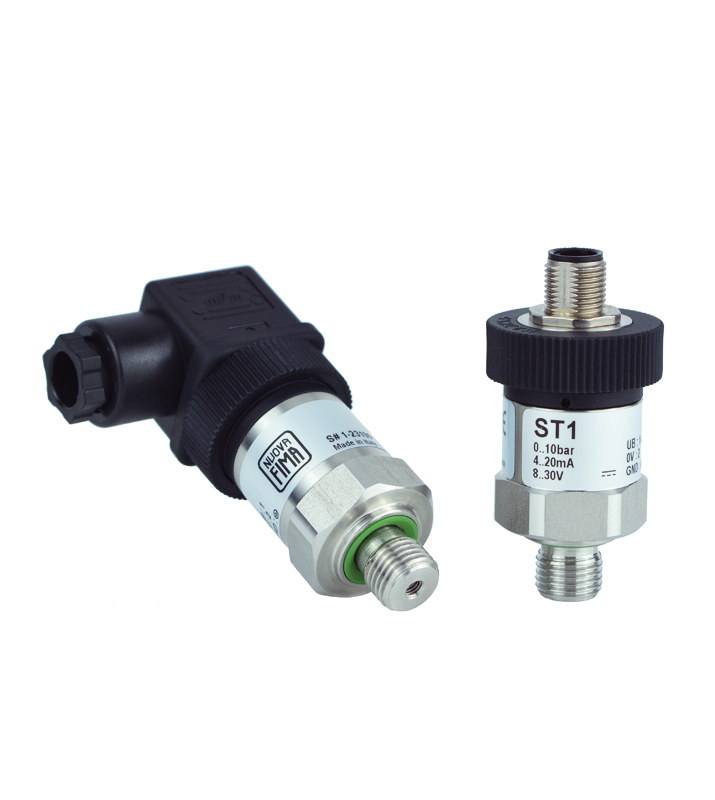

ST1

Pressure transmitter for industrial application, compact design, ceramic sensor

The ST1 model is a compact electronic transmitter with ceramic sensor for air, industrial and technical gases, water and oil.

Industrial sector:
  • Water treatment
  • Machine building (OEM)
  • Refrigeration
  • Technical gases
Instrument type:
  • Pressure transmitters
Conformity:
  • Directive PED 2014/68/UE
  • Directive RoHS 2011/65/UE
  • Directive EMC 2014/30/UE
Function:
  • Transmitter
Specific applications:
  • Vacuum
  • Combined (Vacuum + Pressure)
Material:
  • All Stainless steel
Accuracy:
  • <= ±0,5% of the range
Range:
  • 0...1 / 0...600bar
Sensing element:
  • ceramic sensor
Protection degree:
  • IP 65
Process connection material:
  • AISI 316 L
Sensing element material:
  • ceramic
Output signal:
  • 4...20 mA, 0...5 Vcc, 0...10 Vcc, 1...5 Vcc, 0,5...4,5 Vcc
Name Type Download
Data Sheet ST1 Data sheetitenesptdefrru
User Guide ST1-ST2 Manualitenesfr
PED-EMC-RoHS Conformityiten
RoHS Conformityiten
