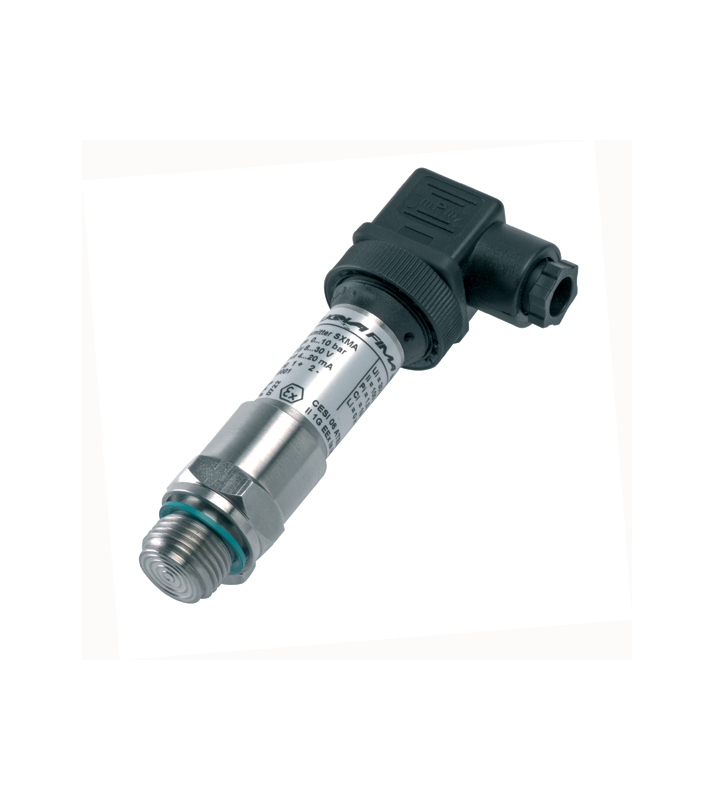

SX MA

Flush diaphragm pressure transmitter, intrinsecally safe ATEX version

✔ Zones : mining, 0, 1, 2, 20, 21, 22
✔ Wetted parts: st.st.AISI 316L.
✔ EMC emission and immunity: as per EN 61326.
✔ Case: with ventilation device.
✔ Calibration: adjustable.

Industrial sector:
  • Chemical, Petrochemical
  • Energy
  • Water treatment
  • Oil & Gas
  • Machine building (OEM)
Instrument type:
  • Pressure transmitters
Specific applications:
  • ATEX version
  • Crystallizzing fluids
  • Viscous fluids
  • Corrosive fluids
Conformity:
  • Directive PED 2014/68/UE
  • Directive ATEX 2014/34/UE
  • Directive RoHS 2011/65/UE
  • Directive EMC 2014/30/UE
Function:
  • Transmitter
Material:
  • All Stainless steel
Accuracy:
  • <= ±0,5% of the range
Range:
  • 0...1 / 0...600bar
Sensing element:
  • Welded diaphragm
Protection degree:
  • IP 65
Process connection material:
  • AISI 316 L
Sensing element material:
  • AISI 316 L
Type of protection:
  • II 1GD Ex ia IIC T6 Ex ia IIIC T85°C Ta<=60°C
Output signal:
  • 4...20mA
Sealing:
  • VITON gasket
