MGS9/6

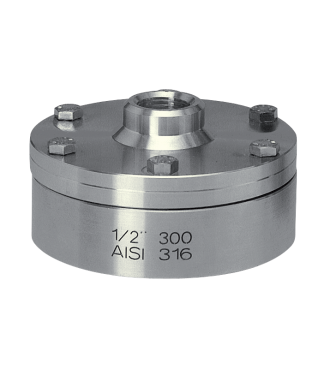

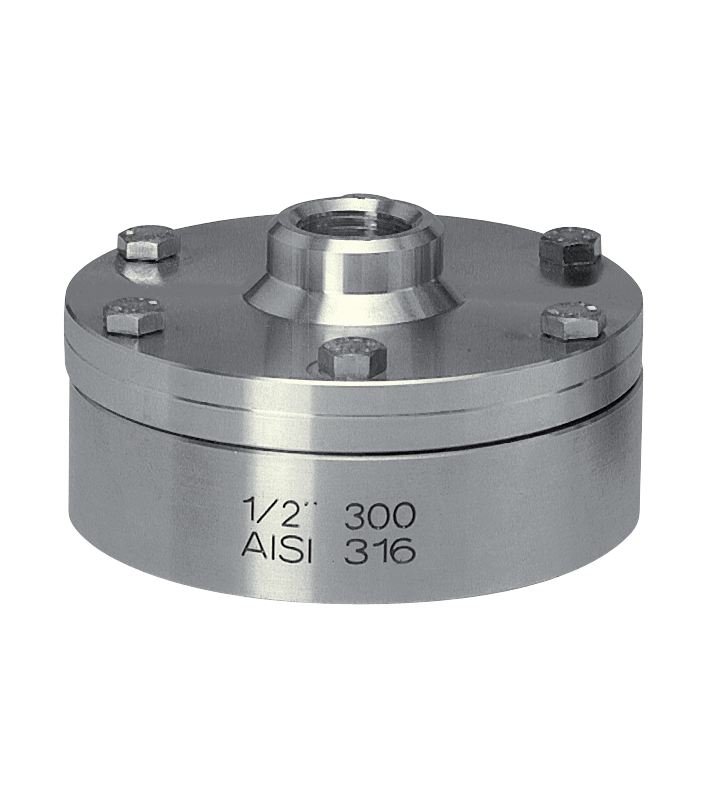

Back side diaphragm seals, with flanged connection

Diaphragm seals are designed to isolate the sensing element of pressure gauges, pressure switches and electronic pressure transmitter from process fluids which may be corrosive, viscous, sedimentous and/or with a high temperature. The diaphragm is leak proof tested to guarantee fill fluid separation from process fluid. Process side are ASME/EN 1092 flanged to suit application in chemical, petrochemical, water treatment and paper industries.

工业领域:
  • 油气
  • 化工、 石化
  • 能源
  • 工程总承包 (EPC)
使用条款:
  • NACE 版本
  • ATEX 版本
  • 易凝固液体
  • 高粘度液体
  • 固体漂浮物液体
  • 腐蚀性液体
  • 低压
  • 介质温度高
  • 真空
  • 混合（真空 + 压力）
符合:
  • NACE MR 01.75
  • NACE MR 01.03
  • EN 1092
  • ASME B16.5
  • ATEX 2014/34/UE
功能:
  • 附件
附件:
  • 隔膜密封
材质:
  • 不锈钢和特殊材料
过程连接:
  • 法兰
范围:
  • 0...0,1 / 0...40bar
传感元件:
  • 焊接膜片
过程连接材料:
  • AISI 316, AISI 316L, AISI 316L + PTFE, ASTM A182 F51
传感元件的材料:
  • AISI 316L, Monel 400, Hastelloy C276, Tantalum, Titanium, AISI 316L+PTFE, Alloy 600, Alloy 825, Alloy 625
密封:
  • PTFE 垫片

MCE20 DN150
